  • HG1041

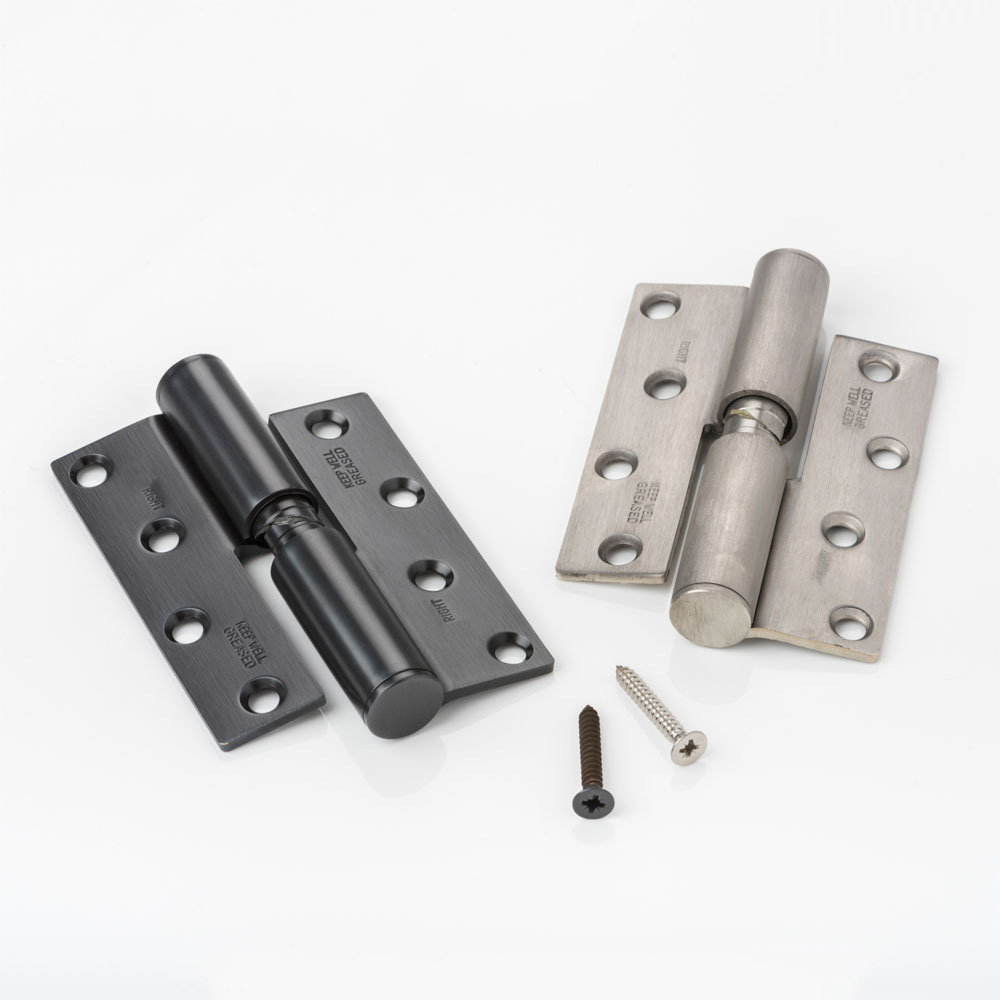

Joseph Giles - High performance rising butt lift-off hinge (right hand)

Model code: HG1041

Made from the finest grade stainless steel and carefully hand-finished this rising butt hinge is a true testament to British engineering.

High performance rising butt hinge, tested on a maximum adjusted door weight of 50kg with two hinges: due to the precision engineering of these rising butt hinges, three or even four can be used per door leaf to increase the load bearing if required.

Rising hinges are designed to ensure a door closes once opened and are often used on cubicle doors; the hinges cause the door to rise as it opens, the door will rise 10.5mm over 180 degrees so special door head/frame details may be required. To ensure correct operation, pairs of rising butts must be fitted co-axially with screws supplied. Minimum recommended door thickness 29mm. Rising hinges require regular maintenance. After fitting, the cam faces and pin must be lubricated with grease supplied.

Supplied as single items with fixings.

Please note that this product is not available in chrome, although polished stainless steel is a very good match.

For up-to-date Dimensions & Technical Help Sheets on this item please visit the Joseph Giles UK website product page josephgiles.com/product/HG1041. You will need to create an account to login. Alternatively, contact our helpful sales consultants for assistance.

Made to Order: Please note, this product is specially ‘made to order’ for your project. Quantity discounts are available. 100% payment is required for ‘made to order’ items before the order is placed.

Price on Application: Joseph Giles ‘$POA’ pricing is available on request. Please add to your list, advise us of quantities required and submit to us for an obligation-free quote.

Select Model & Finish for RRP (inc. GST)
  1. Select Option

    Select Option

    Done
  2. Model, Finish & RRP (incl. GST)

    Select Finish

      Done

    Added to your list

    View My List Continue browsing
    Product documentation

    Select Documents to Download

    Finishes Available

    • brushed-brass-waxed joseph-giles
      Brushed Brass Waxed
    • brushed-nickel joseph-giles
      Brushed Nickel
    • dark-bronze-waxed joseph-giles
      Dark Bronze Waxed
    • mid-antique-brass-waxed joseph-giles
      Mid Antique Brass Waxed
    • polished-brass-waxed joseph-giles
      Polished Brass Waxed
    • polished-nickel joseph-giles
      Polished Nickel
    • polished-stainless-steel joseph-giles
      Polished Stainless Steel
    • satin-stainless-steel joseph-giles
      Satin Stainless Steel
