Joseph Giles - Standard latch

Model code: LA1014

This standard vertical latch is recessed into the door and its latch bolt is operated by a pair of lever handles with an 8mm spindle. This latch is non-locking. This latch comes as either heavy sprung (HS) for use with unsprung lever handles, or as light sprung (LS), for use with sprung lever handles. Minimum door thickness for these locks is 32mm and the maximum, as standard, is 54mm.

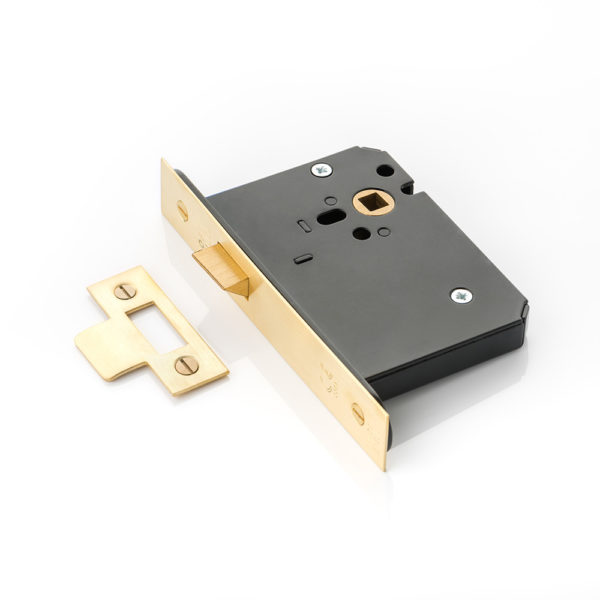

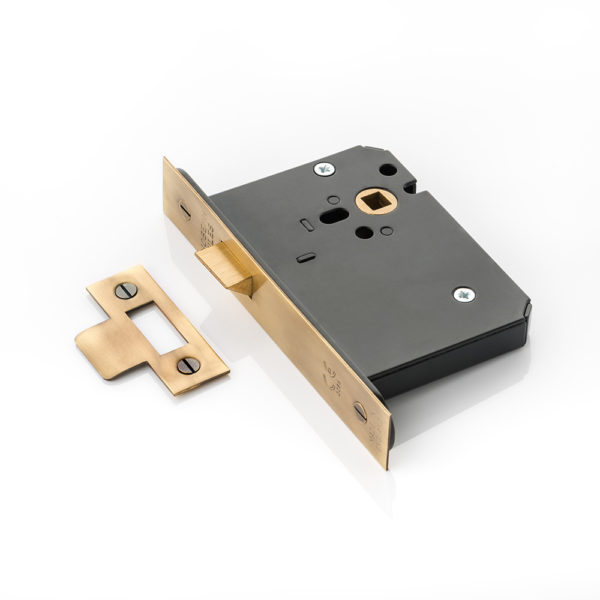

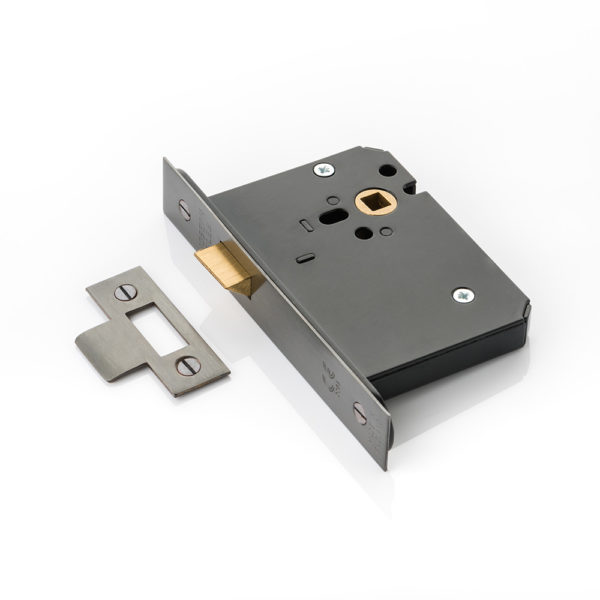

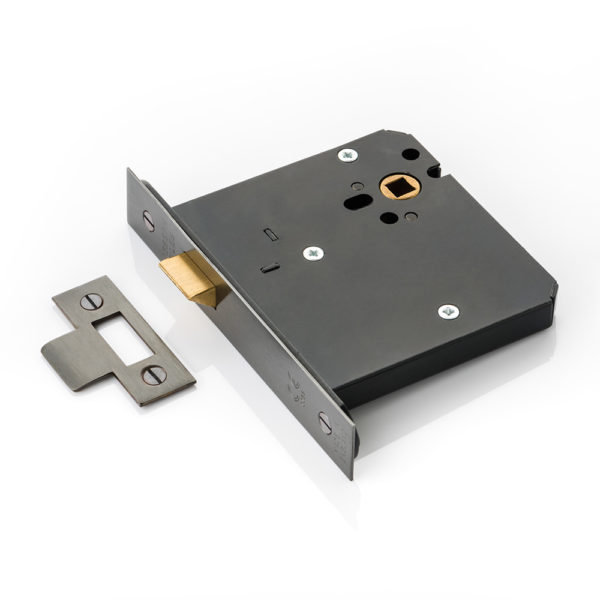

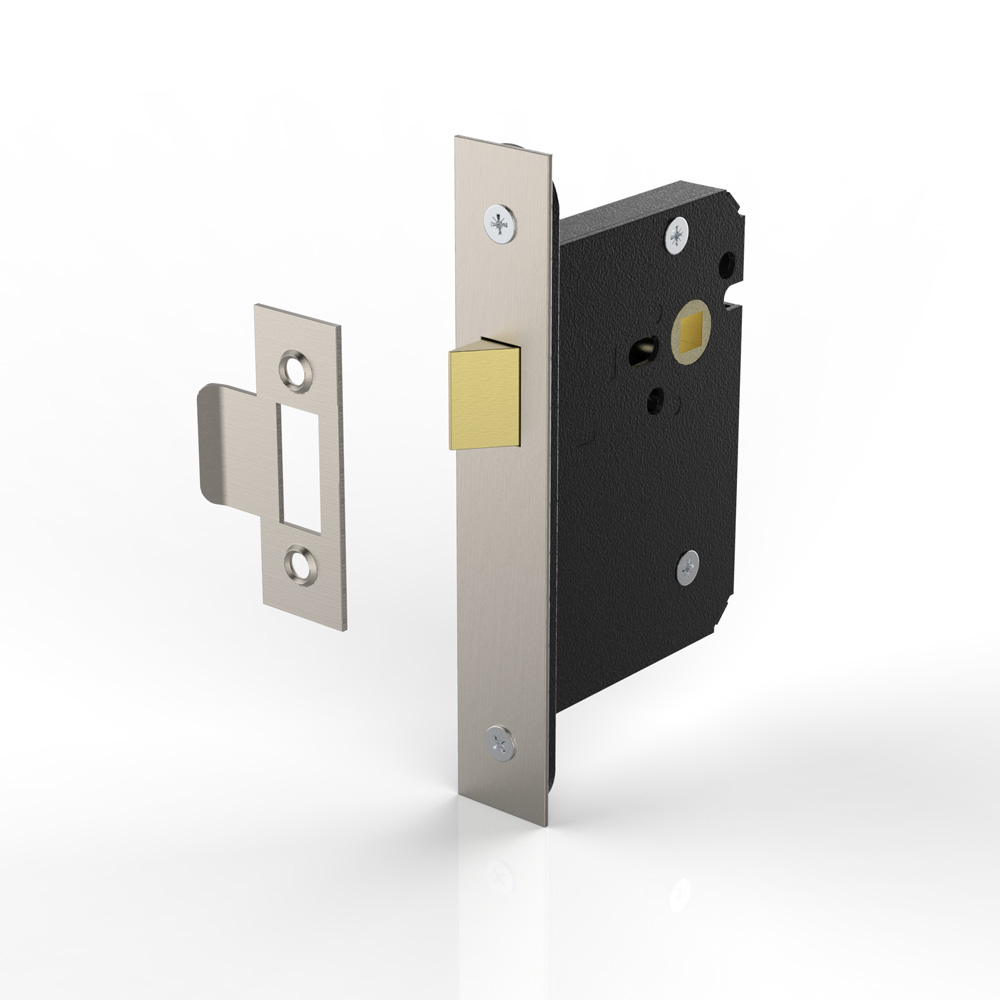

Includes:

Latch case (The actual latch)
Forend (Plate that goes over the end of the lock)
Strike plate (Plate that is fitted to the frame)
Fixing pack

For up-to-date Dimensions & Technical Help Sheets on this item please visit the Joseph Giles UK website product page josephgiles.com/product/LA1014. You will need to create an account to login. Alternatively, contact our helpful sales consultants for assistance.

Select Model & Finish for RRP (inc. GST)

Select Option
Select Option

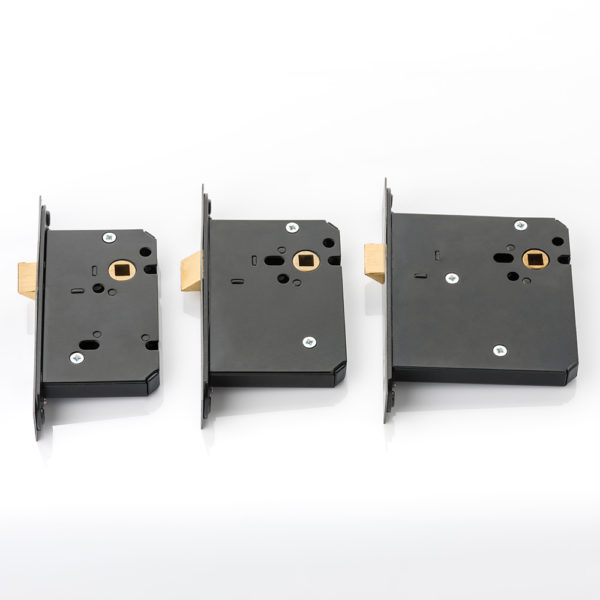

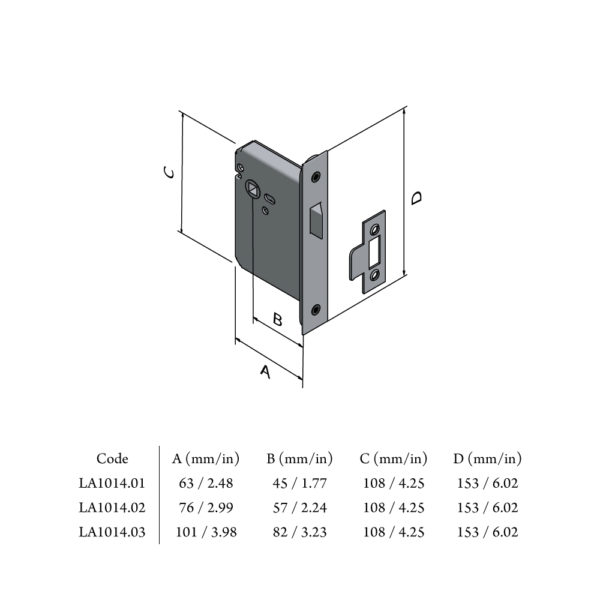

1. 63mm x 45mm x 108mm 64mm (LA1014.01.)
2. 76mm x 57mm x 108mm x 64mm (LA1014.02.)
3. 101mm x 82mm x 108mm x 64mm (LA1014.03.)
